Freightliner

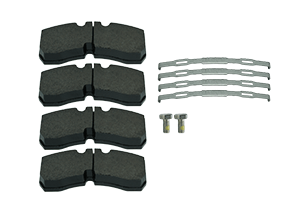

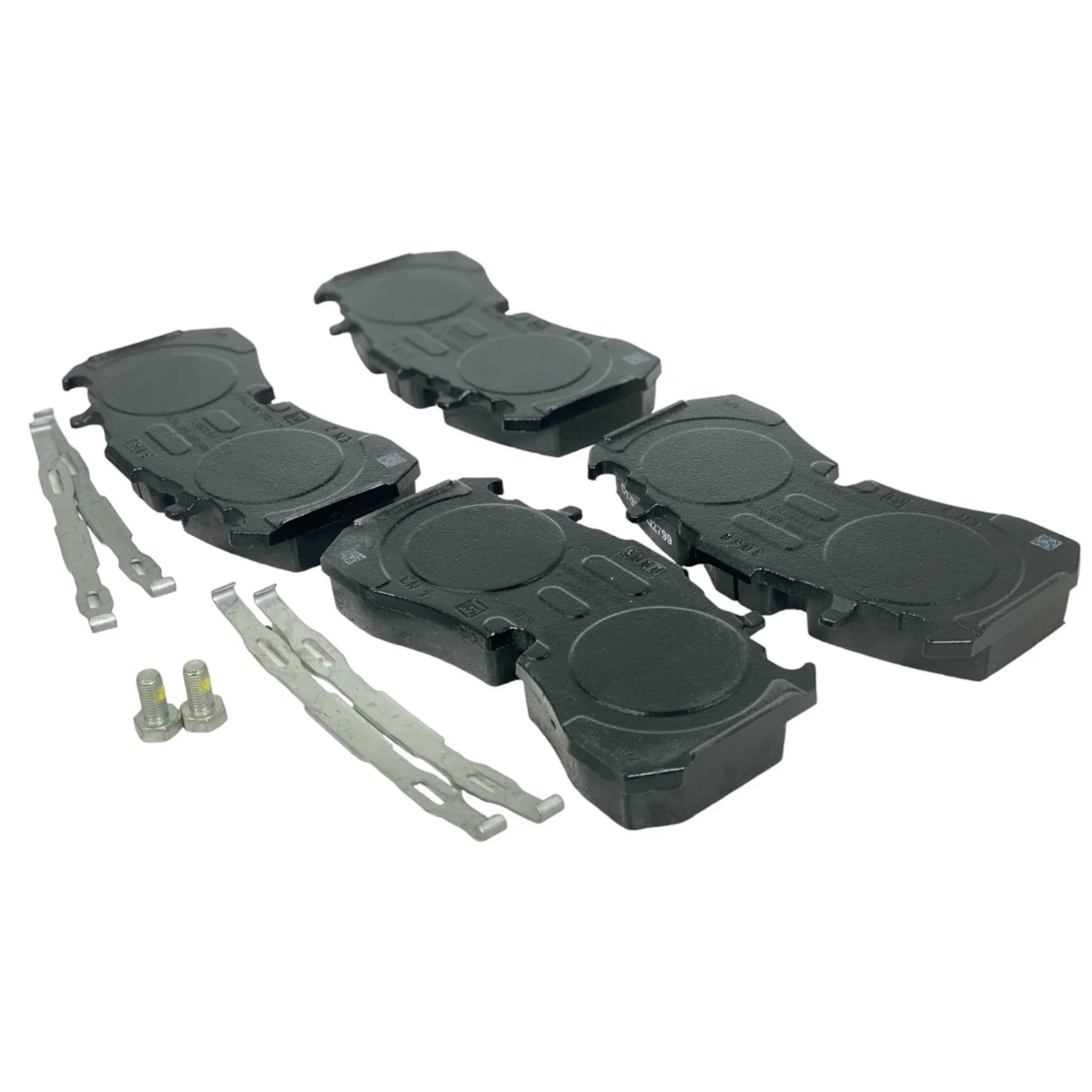

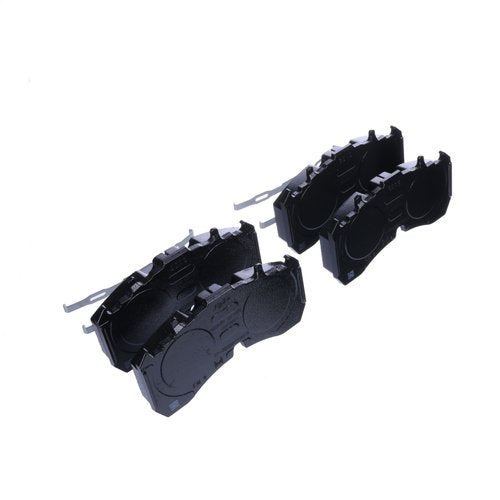

Active Part Number | KIT2252L2CG (Genuine Meritor) |
Superseded Numbers | KIT2252LCM7400, KIT2252LCM7070, KIT2252L2CD2 |
FMSI Friction Code | D1370 / 1370 |
Caliper Compatibility| Meritor EX225L & EX225LS (Twin Piston) |
Backing Plate Width| 8.50 inches (8-1/2") |
Backing Plate Height| 4.375 inches (4-3/8") |
Friction Material Type| MA9300 Premium Linehaul Semi-Metallic |
Copper Compliance| Level N (Zero Copper Compliant) |
Box Shipping Weight| Approx. 18.20 lbs|

• Volvo Trucks: This kit is the primary original equipment standard for Volvo VNL, VNM, VHD, and VNX series heavy-duty trucks using Meritor wheel ends.
• Mack Trucks: Fits heavy-duty Mack Anthem, Pinnacle, and Granite models configured with factory air disc caliper setups.
• Freightliner: Fits select vocational and severe-duty models outfitted with optional Meritor axle groups rather than standard Bendix gear.

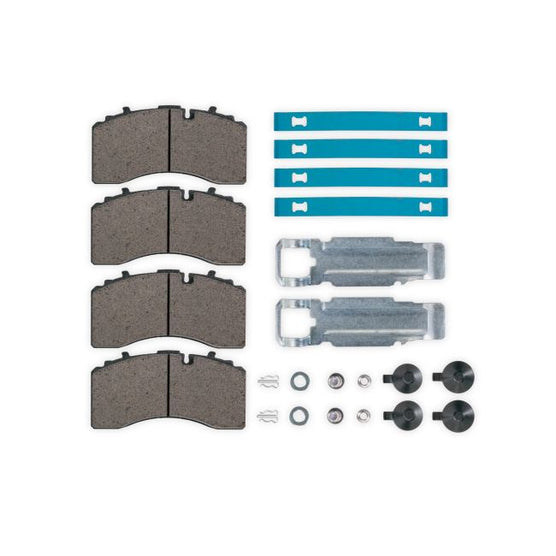

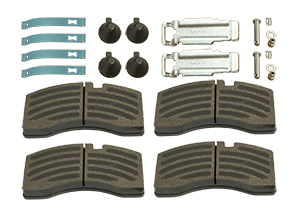

Brand: Genuine Bendix / FleetPride Network

Part Number: K297277 / BWK297277

Superseded Part Numbers: K129276, K070796, 802078

FMSI Standard Friction Code: D1369 / 1369

Caliper System Compatibility: Bendix ADB22X & SK7 Air Disc Calipers

Friction Compound Layout: BX277 Premium Semi-Metallic (Copper-Compliant)

Pad Dimensions: 8.26 in. Wide x 4.21 in. Long x 1.18 in.

Thick Kit Inclusions: 4 Premium Pads (Full Axle Coverage) plus Complete Retention Hardware Kit

Specifications

Brand: TZ Premium Fleet Products

Part Number: TZ-4720

Industry Cross-Reference: FMSI 4720 / 4720Q / 4720QP

Brake Size Dimensions:16.5 inches Diameter x 5.0 inches Width (16.5" x 5")

Design Type: Meritor Q-Plus (Q+) Style System

Axle Application: Front Steer Axle Position

Axle Load Rating: Up to 23,000 lbs GAWR

Brand: TZ Premium Fleet Products

Part Number: TZ-4719

Industry Cross-Reference: FMSI 4719 / 4719E / 4719ES2

Brake Size Dimensions: 16.5 inches Diameter x 5.0 inches Width (16.5" x 5")

Design Type: Eaton Extended Service (ES / ES II) System Style

Axle Application: Front Steer Axle (and select specialized trailer axles)

Axle Load Rating: 23,000 lbs GAWR

Brand: TZ Premium Fleet Products

Part Number: TZ-4711

Industry Cross-Reference: FMSI 4711 / 4711E / 4711ES

Brake Size Dimensions: 16.5" Diameter x 8.625" Width (16.5 x 8-5/8)

Design Type: Eaton Extended Service (ES) System Style

Axle Load Rating: 23,000 lbs GAWR

Application Position: Heavy Rear Drive Axles & Heavy Trailer Tandems

• Freightliner (Cascadia, Century, Columbia, Coronado)
• Volvo (VNL, VNM series)
• International / Navistar (ProStar, LT Series)
• Kenworth (T660, T680, T800)
• Peterbilt (386, 389, 579)

• Brand: TZ Premium Fleet Products
• Part Number: TZ-4707
• Industry Cross-Reference: FMSI 4707 / 4707Q / 4707QP
• Brake Size Dimensions: 16.5" Diameter x 7" Width
• Unit Weight: 17.6 lbs
• Design Type: Meritor Q-Plus Style S-Cam
• Rivet Pattern: Standard 32-Hole Configuration

• Freightliner: Cascadia, Columbia, Century, Coronado
• Volvo: VNL, VNM, VNR Series
• International / Navistar: ProStar, LT Series
• Kenworth & Peterbilt: T680, T880, 579, 389
• Commercial Trailers: Heavy-duty suspensions from Hendrickson, Great Dane, and Utility

Part #: TZ3758X | Brand: TruckZone Pro | MPN #: 3758X

• This brake drum is designed for outboard drum mounted
• It has 10-Bolt holes, which are used to mount the brake drum to the wheel hub
• Extended drum life
• Improved stopping power
• Reduced maintenance cost

Part #: TZP 3600AX | Brand: TruckZone Pro | MPN #: 3600AX

• 10- 1" bolt
• 11.25" bolt circle diameter
• Designed for outboard drum mounting
• Extended drum life
• Comprised of cast iron
• Built for on-highway applications

RACOR Fuel Filter R90P

30-micron Aquabloc® spin-on element, 98% efficiency. Height 6.1" (155mm), OD 4.4" (112mm), thread 1"-14 with 3.75" male bottom. Fits Racor 390RC, 490R, 690R, and 790R housings. Flow direction outside-in. Also available as R90S (2µm, brown cap) and R90T (10µm, blue cap). Cross-references: Fleetguard FS19532/FS19932, Donaldson P551856, Mann WK1060/3X.

Part # A4711800209

Cartridge style, 4.76" OD x 10.35" length, 50% efficiency at 17 microns; cross-references Donaldson P551005 / Fleetguard LF17511.

Part # A0000903651

7-micron pleated element, 7.61" tall x 5.83" OD with a 1.03" inner bore; replaces Fleetguard FS19915, Baldwin PF9804, and Donaldson P551011.

Part# A0001485007

2-micron filtration for DD13, DD15, DD16 (2013–2023); 6.08" diameter x 8.25" length; water-separating design for the Fuel Pro 485 housing.

Part # A4700903151

Two-element set (pre-filter coalescer and final filter) with fresh O-rings for DD13, DD15, and DD16; supersedes earlier A4720900451/551/651 kits.

Part # A4720921705

Compatible with 2020+ DD13, DD15, DD16 Detroit Diesel engines; 99% filtration efficiency with 20,000-mile durability.

Part Number FS19764

EleMax Plus cartridge, 7.04" length, 4.21" OD, 10-micron rating, biodiesel compatible.

Fits Fuel Pro and many Diesel Pro models.

Free and emulsified water separation at 95%, TWA efficiency 98.7%

Davco Fuel Pro 230 / Industrial Pro 234; Cummins, Volvo, Mack, International

Part Number LF14000NN

Spin-on oil filter, 11.602" height, 4.736" OD, M95x2.5-7H thread, NanoNet media.

100g capacity, 98.9% efficiency at 30 microns and 72.3% at 10 microns,

 rated flow 27.74 gal/min.

Cummins ISX, ISX15, X15, ISM, QSX, QSM, M11; also Volvo, Mack, others

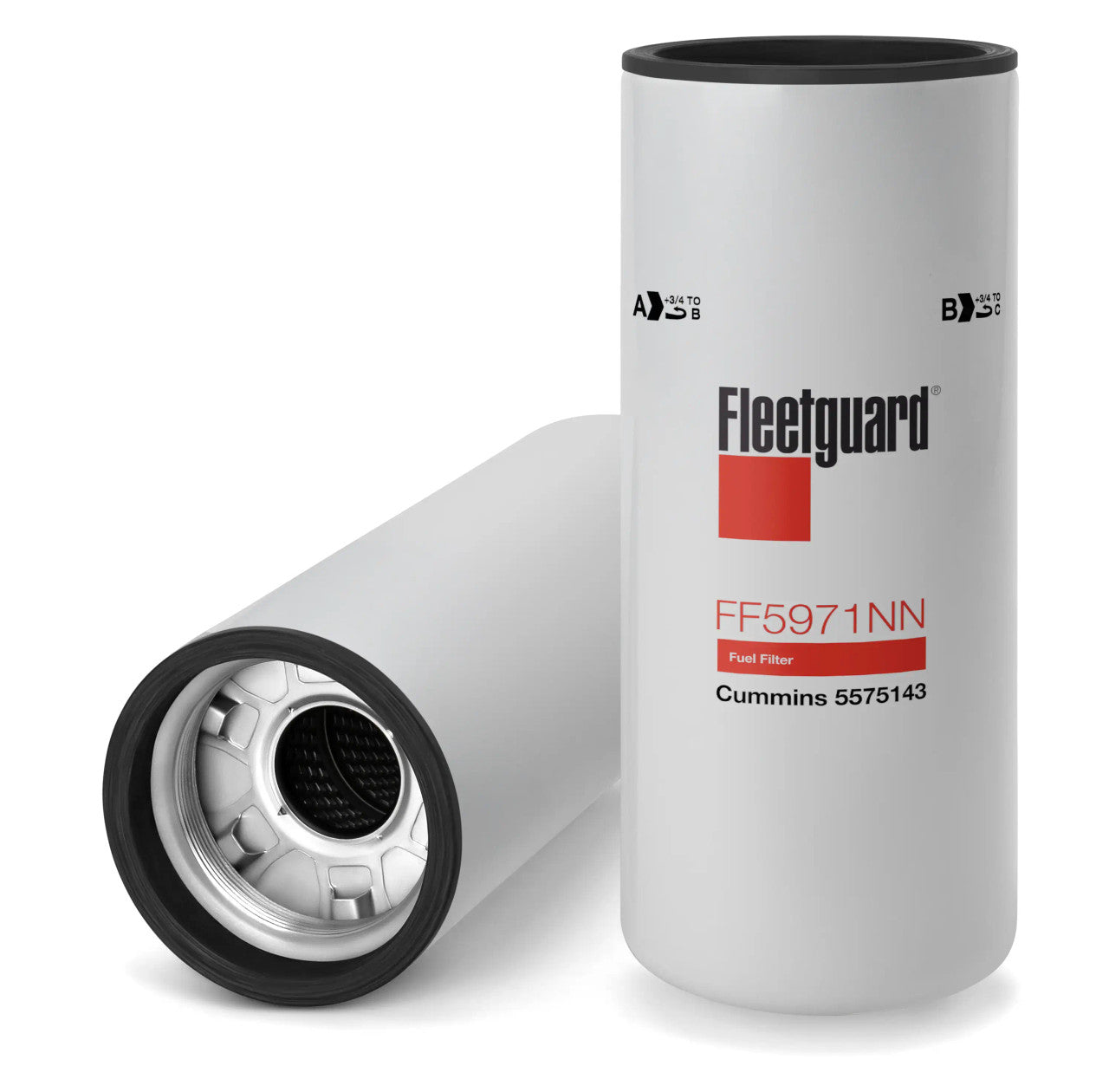

Part Number FF5971NN

Spin-on fuel filter,

11.50" length, 4.74" OD, M90x2-7H thread,

NanoNet media rated at 4 micron @ 99.2% efficiency.

Designed for 2020+ Cummins X15 with a 75,000-mile capable service interval.

Replaces FF5825NN, FF5776; Cummins P/N 5575143

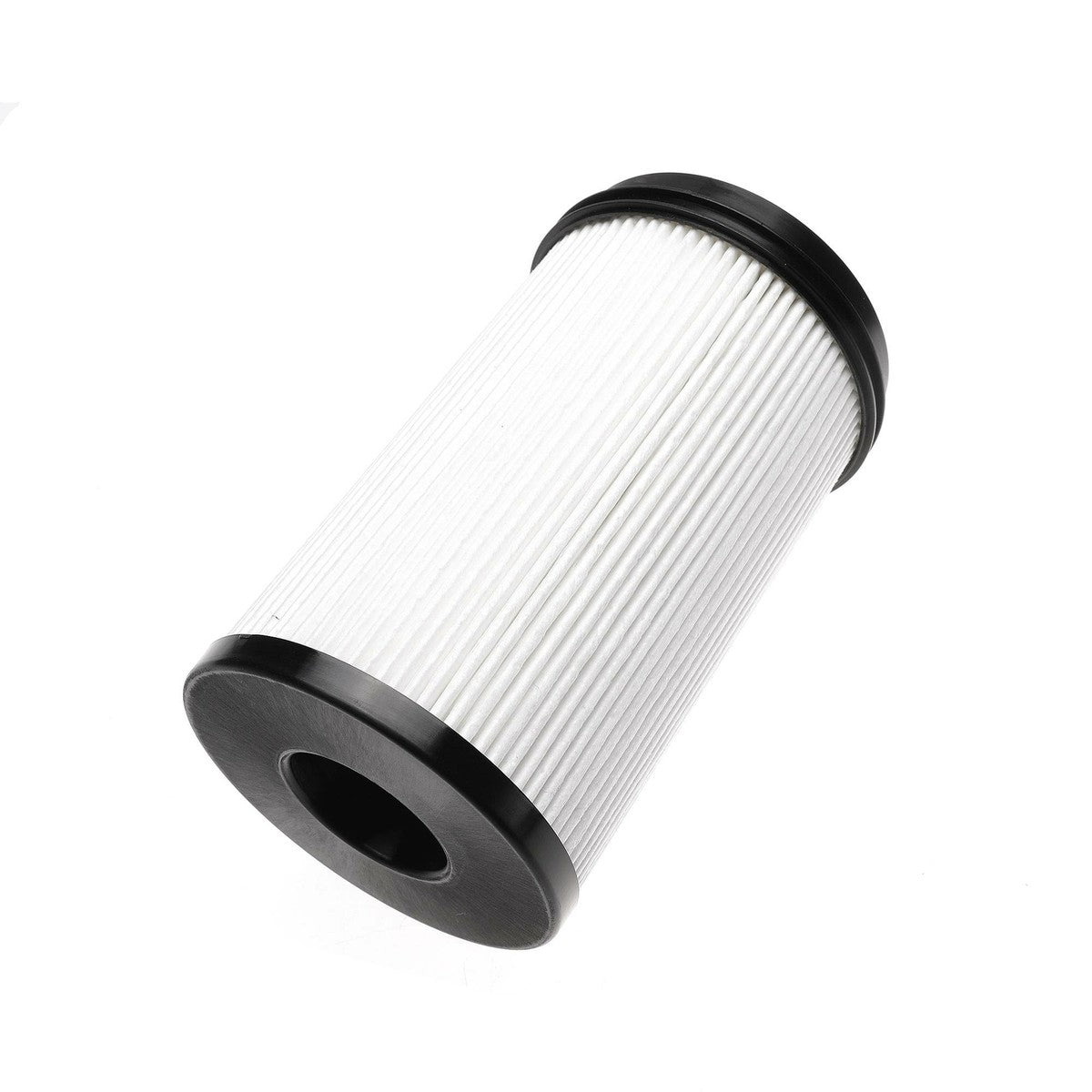

Part # R61709

Fuel water separator filter, 7.25" height, 4.25" OD. 7-micron filtration for Detroit Diesel engines.

Fleetguard cross-reference is FS20176, also crosses to Baldwin PF46235.

Fits DD13, DD15, and DD16 engines on Freightliner Cascadia and Western Star trucks.

Silicone Oil Clutch Pump

PART# 4722002701

Compatibility

This part fits the Detroit Diesel DD13 and DD15 engines. It is specifically used in Freightliner Cascadia trucks equipped with DD13/DD15 engines and is designed as an OEM-fit replacement.

PART# TZ4722002801

Used in CASCADIA 2008-2017, CASCADIA P4 2018-2025

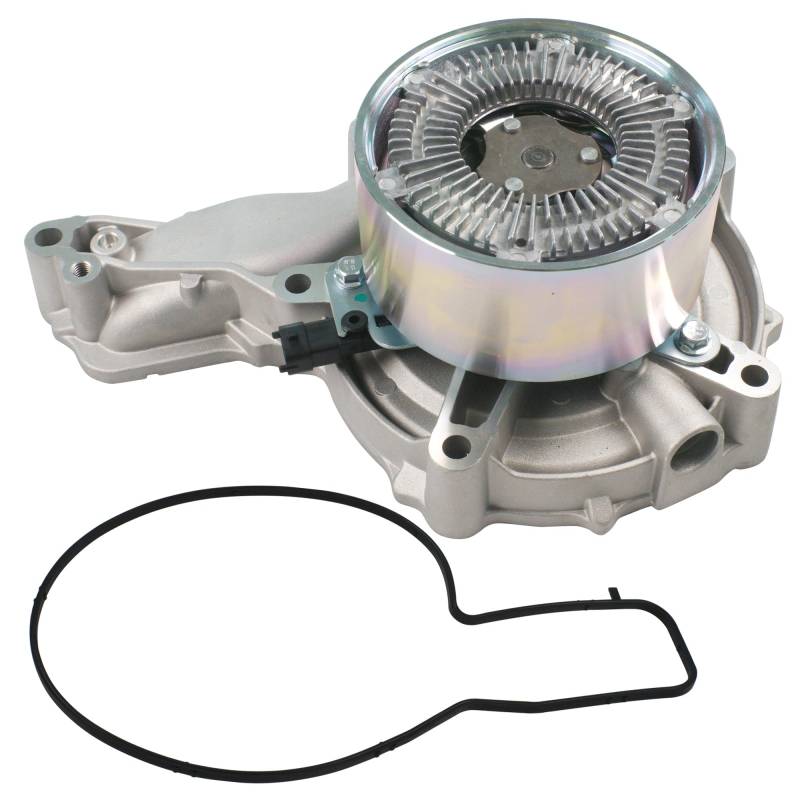

Water Pump

Part# TZ 2415057

Used in Volvo D13 and Mack MP8 Engines

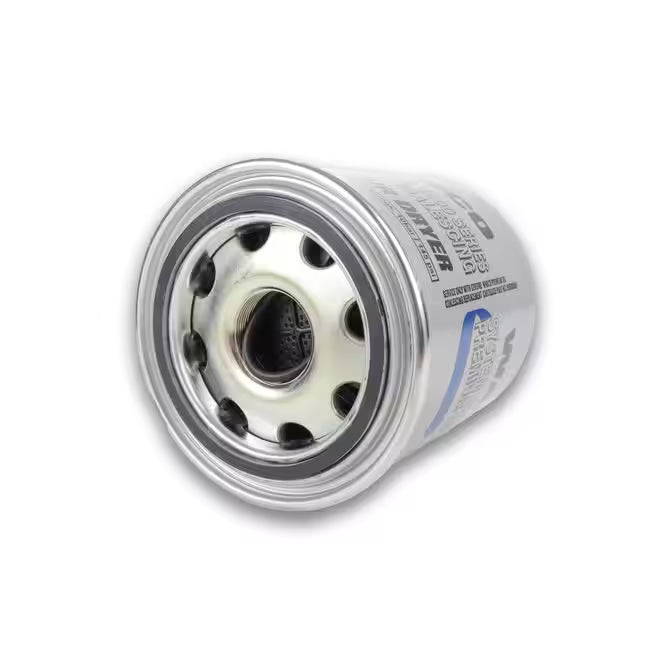

Part # WAB 432 901 248 2

Coalescing desiccant cartridge; max operating pressure 10.0 bar; port thread SG39 x 1.5; service interval up to 2 years; removes 99.9% of oil and particulate. Fits WABCO SS1200, Bendix AD-SP, AD-IS, and AD-9si dryers across Freightliner, Peterbilt, Kenworth, and International trucks.

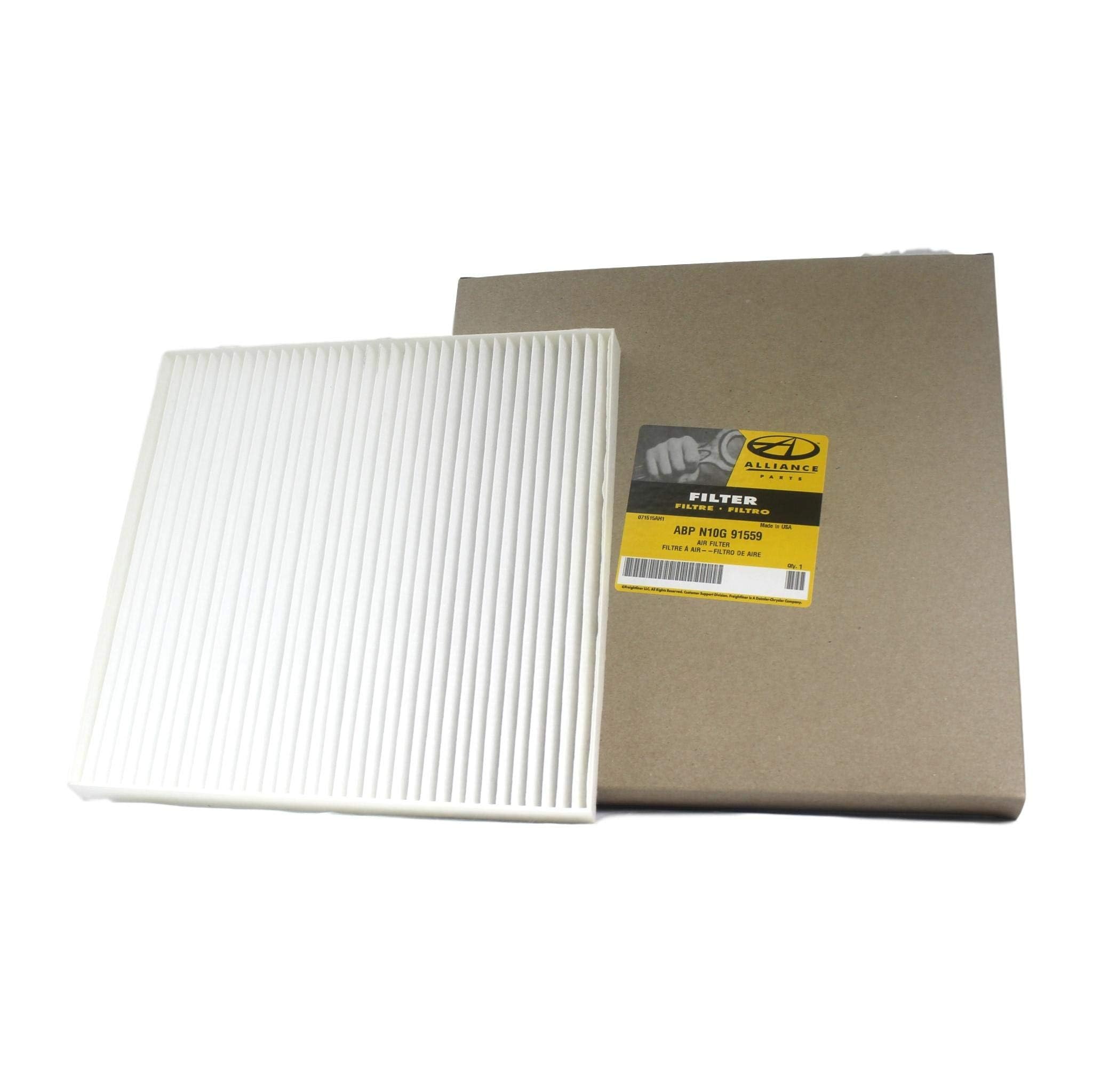

Part # DDE BOA91559

Alternate Part# ABP N10G 91559

10.625" x 10.625" x 1" paper cabin filter; fits Freightliner Cascadia 2008–2018, Century 112/120, Columbia 112/120, and Coronado.

Part # 84032457001

10.43" x 6.5" x 0.39" filter fits front (near fuse box) and bunk (under cabinet) slots in Freightliner Cascadia 2019–2024. Filters over 98% of dust and allergens at 3 microns.

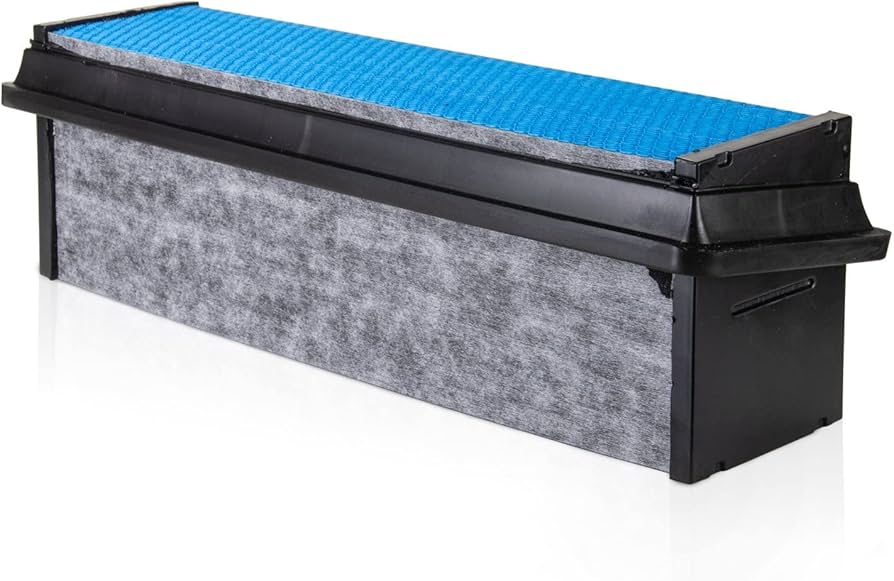

Part # 03-42776-010

High-efficiency pleated media engine air filter, approximately 8" wide, ~25" length, for heavy-duty diesel applications including Freightliner Cascadia 2018–2022.

Part Number LF14001NN

11.602" height, 4.736" OD, M95x2.5-7H thread.

Extended service intervals up to 100,000 miles;

NanoNet media removes 98.7% of particles as small as 4 microns;

holds 11 to 24 grams more contaminants than competing filters.

Cummins X15, X12, ISX, ISM, QSX, QSM
