Freightliner Radiator

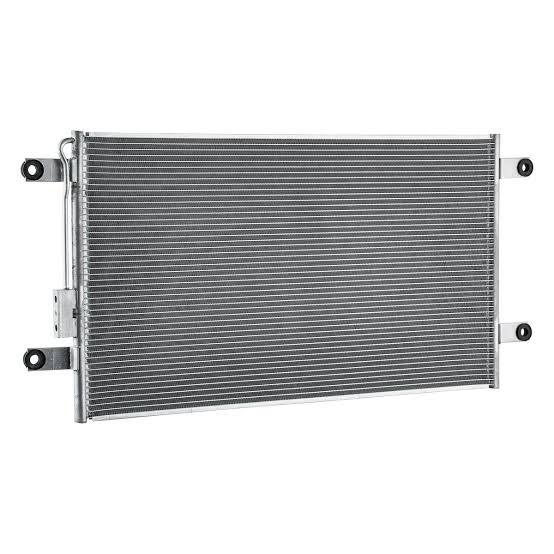

The OEM part number A22-72869-000 and factory/manufacturer part number YYC1178 represent a heavy-duty A/C Condenser Assembly engineered for Freightliner Cascadia commercial semi-trucks

• Freightliner: Cascadia and New Cascadia Series (Typically Model Years 2017–2022)

• Core Dimensions: 33-7/8" Length x 21-1/8" Height x 5/8" Depth
• Core Style: High-Efficiency Parallel Flow Aluminum Construction
• Connection Profile: Pad/Block-Style O-Ring Inlet and Outlet Fittings
• Refrigerant Compatibility: Optimized for standard R134a systems
• Receiver-Drier: Not Included (re-use existing or replace concurrently)

• OEM Part Numbers: A22-72869-000, A2272869000, A22-67123-000, A2267123000, ABP N83 322055
• Factory / Manufacturer Numbers: YYC1178, 400-1823, CON0094, 813.46115, 04-0618, MEI 6423, T7834

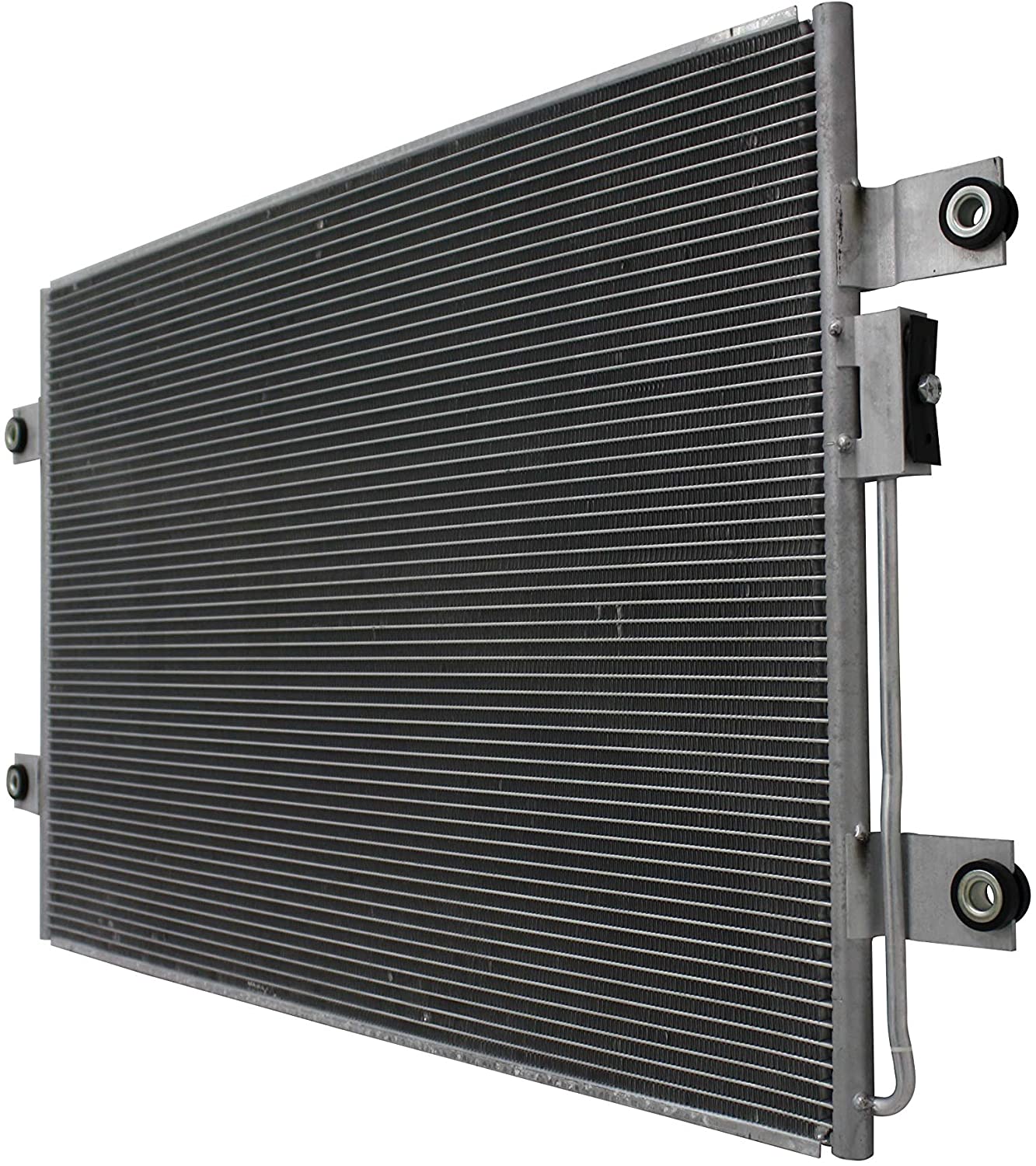

New Heavy Duty A/C Condenser for Freightliner Cascadia & Western Star | OEM A22-72870-000 YYC1179

• Freightliner: New Cascadia Series (Model Years 2018 and Newer)
• Western Star: 49X and 57X Series (Model Years 2022 and Newer)

• Core Dimensions: 33-7/8" Length x 21-7/8" Height x 5/8" Depth
• Core Style: High-Efficiency Parallel Flow Aluminum Construction
• Fin Density: 16 Fins Per Inch (FPI) for optimized heat dissipation
• Connection Profile: O-Ring Block-Style Inlet and Outlet Fittings
• Refrigerant Compatibility: Engineered for standard R134a systems
• Receiver-Drier: Not Included (re-use existing or replace concurrently)

• OEM Part Numbers: A22-72870-000, A2272870000, ABP N83 32 2115, FLTAC2433715
• Factory / Manufacturer Numbers: YYC1179, 400-1838, 813.46114, 04-0628, MEI 6428, T7835

• Freightliner: New Cascadia P4 Series (Model Years 2017 and Newer)
• Western Star: 57X (Model Years 2023 and Newer)

• Core Dimensions: 36-1/2" Height x 26-1/2" Width x 2" Depth
• Core Style: High-Efficiency Aluminum Bar-and-Plate
• Orientation: Crossflow Design
• Inlet Diameter: 4" Machined Connection Port
• Outlet Diameter: 4" Machined Connection Port
• Mounting Hardware: Includes a complete heavy-duty isolation mount kit to dampen road vibrations.

• OEM Part Numbers: TXE1030523A, TXE1030523, 1030523A, 1030523, TXE1030486, 1030486, 222378, 22769527, FRT18149, FRT18149N
• Factory / Manufacturer Numbers: LC308, SC-222378, LT7078, HDH010808P, 603435

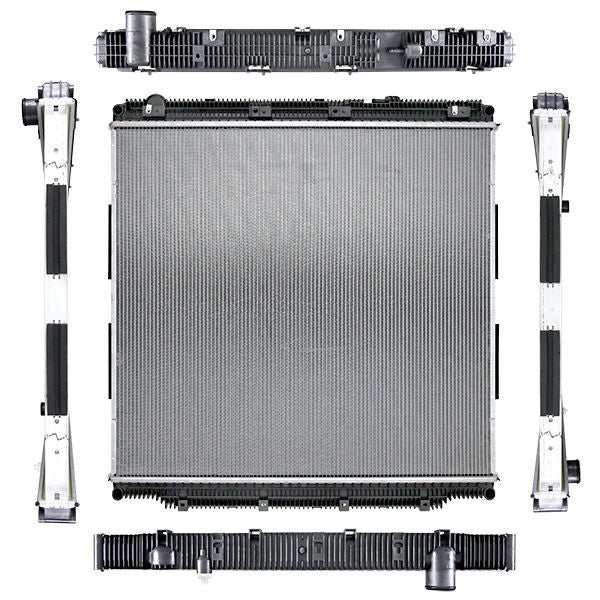

New Heavy Duty Radiator for Freightliner Cascadia | OEM TXE1003850D RP21432-56AT(N)

• Freightliner: Cascadia Series (Model Years 2018 and Newer)
• Freightliner Vocational: 114SD (Model Years 2024 and Newer)
• Western Star: 57X (Model Years 2023 and Newer), plus 47X and 49X platform configurations

• Core Dimensions: 35" Height x 38-1/2" Width x 2-1/16" Depth
• Flow Direction: Downflow
• Inlet Connection: 2-1/2" Top Right Port
• Outlet Connection: 2-1/2" Bottom Left Port
• Oil Cooler: None (Designed for models without an internal oil cooler)


• OEM Part Numbers: TXE1003850D, TXE1003850, 1003850D, 1003850, TXE1004004B, 1004004B, 1004004, TXE1102843C, 1102843C, 1102843, TXE1003849D, 1003849D
• Factory / Manufacturer Numbers: RP21432-56AT(N), RP21432-56AT, 800128PT
